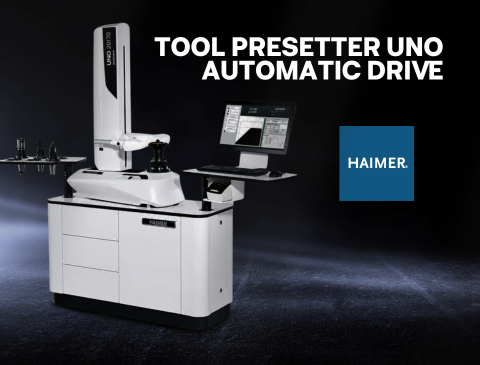

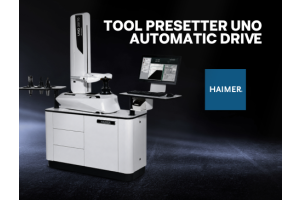

Tool presetter UNO automatic drive

Quality pass

- Automatic tool measurement in 3 axes

- Motorized fine adjustment

- Release-by-Touch

- Repeatability ± 2 μm

- Spindle runout 2 µm



With it´s fully automated measurement operation, UNO automatic drive, the high-end model of the UNO series is fully independent of the operator and can be used with minimal user expertise.

This guarantees maximum quality and time saving, even with complex tools on several planes.





Tool presetter UNO automatic drive

Description Norm: Haimer Value: metric/inch
Maximum tool diameter Ø 15.748 inch
Maximum snap gauge tool diameter   3.937 inch
Maximum tool length on Z-axis   15.748 inch
Maximum tool weight G 66.15 lbs
Mass (weight) M 66.15 lbs





Equipment

Image processing system

Automatic tool measurement in 3 axes

SK50 ultra-high precision spindle, autofocus

Motorised fine adjustment

24" touch screen


Motorized indexing 4 x 90° and 3 x 120°

Spindle brake

Vacuum clamping

Premium base cabinet incl. storage for six adapters

Sigma function

Memory for 1.000 zero points, tools and tool lists

USB / LAN data output

Release-by-touch

Edgefinder

Label printer

Incident light

2 μm spindle runout

± 2 μm repeatability







Equipment options



ISS-U universal ultra-high precision spindle with automatic adapter identification 4 × 90° and 3 x 120°

Turning package: Second camera incl. indexing, 4 × 90°, and 3 × 120° motor driven

Bidirectional interface

Manual RFID-System

Individual release and clamping of X/Z-axis

Post-processor

HQR-Connect

Reamer module for guided reamer

Measured value history
